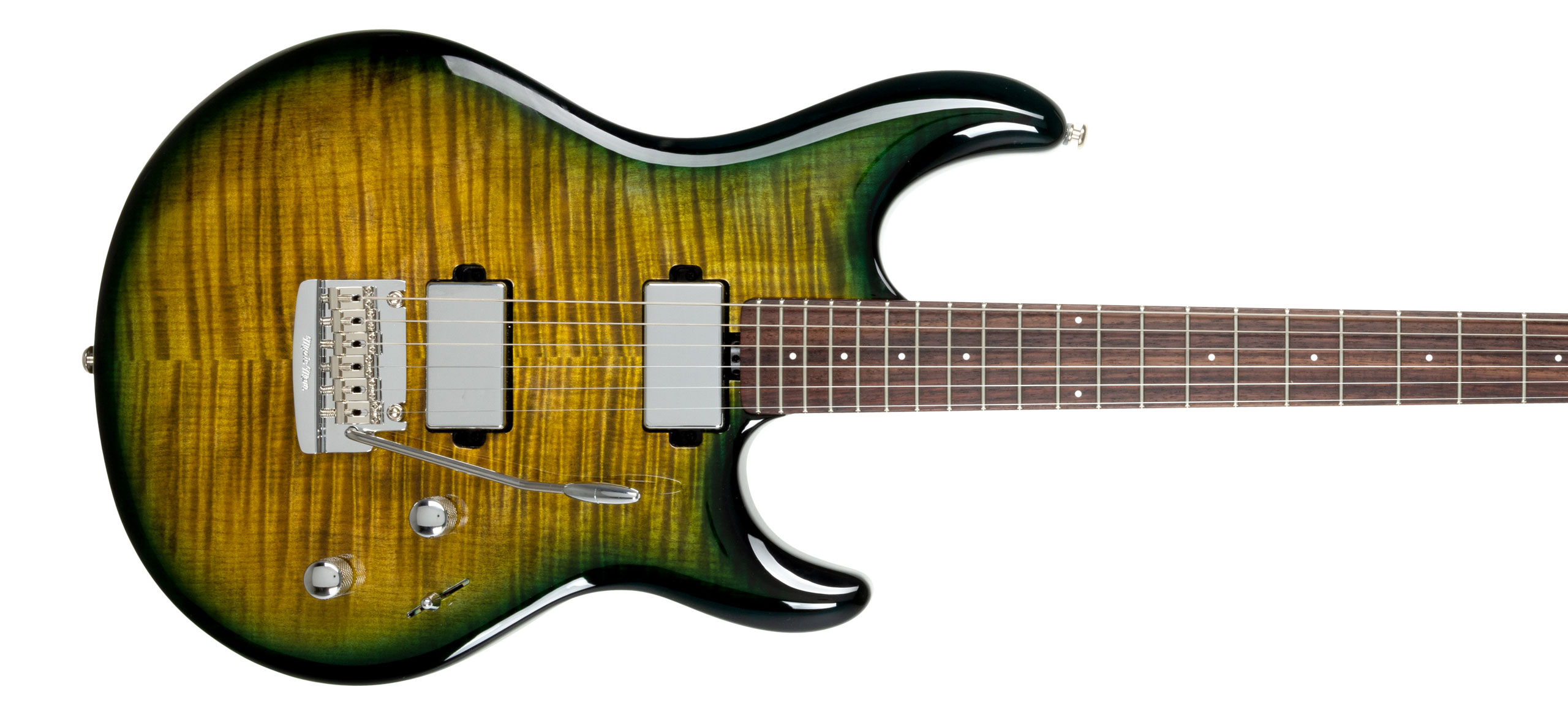

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather, the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 HH maple top signature guitar. This fourth installment in the Lukather signature line of instruments features a lightweight Okoume body, a premium figured maple top with a figured roasted maple neck, and a rosewood fingerboard. The Luke 4 maple top is outfitted with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels. The Luke 4 HH shares many of the standard specifications of the original Luke guitars, including a double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable 12db boost, a Music Man vintage floating tremolo and ships in a Mono case.

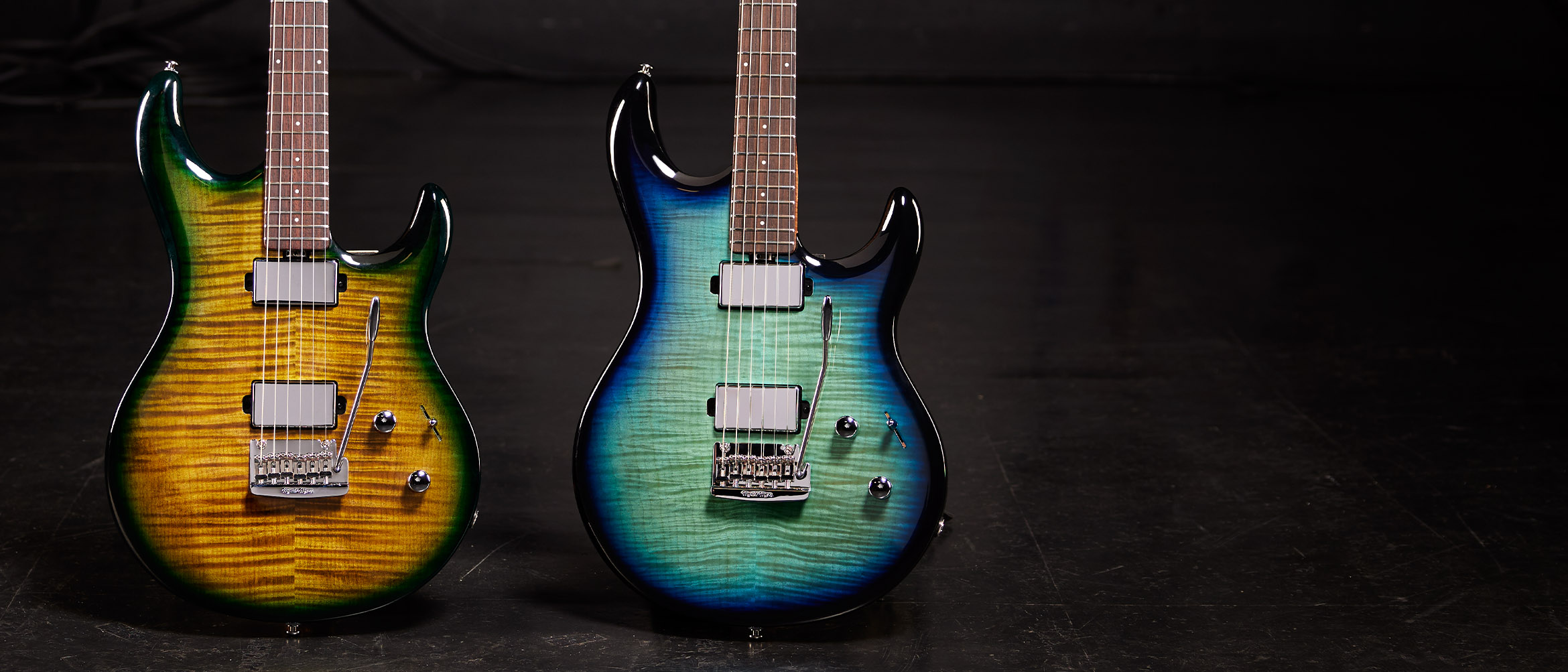

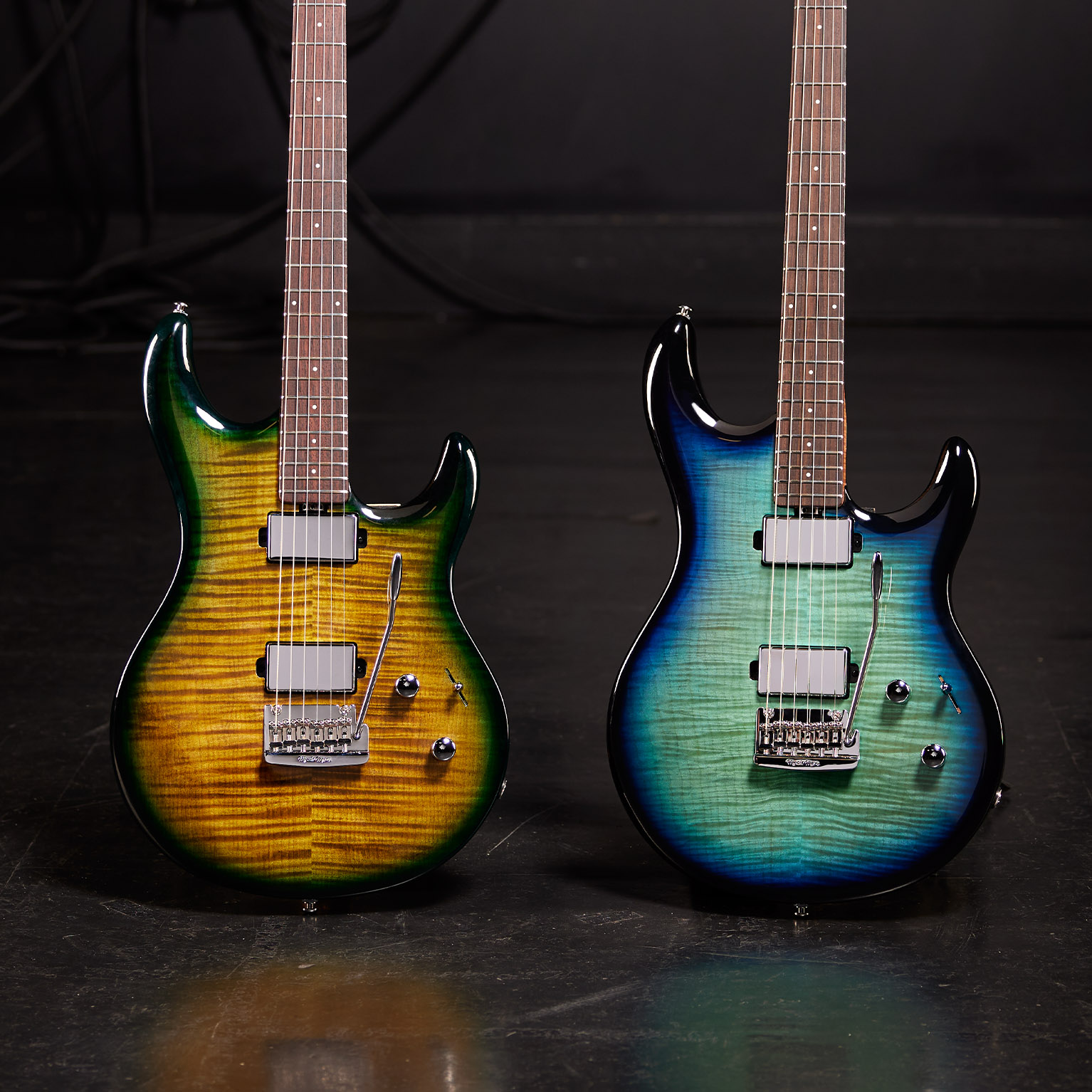

Gator Burst
Blue Dream
HT pickup technology is a new material-based innovation made possible by principles and insights learned from the research and development of Cobalt and M-Steel string technology.

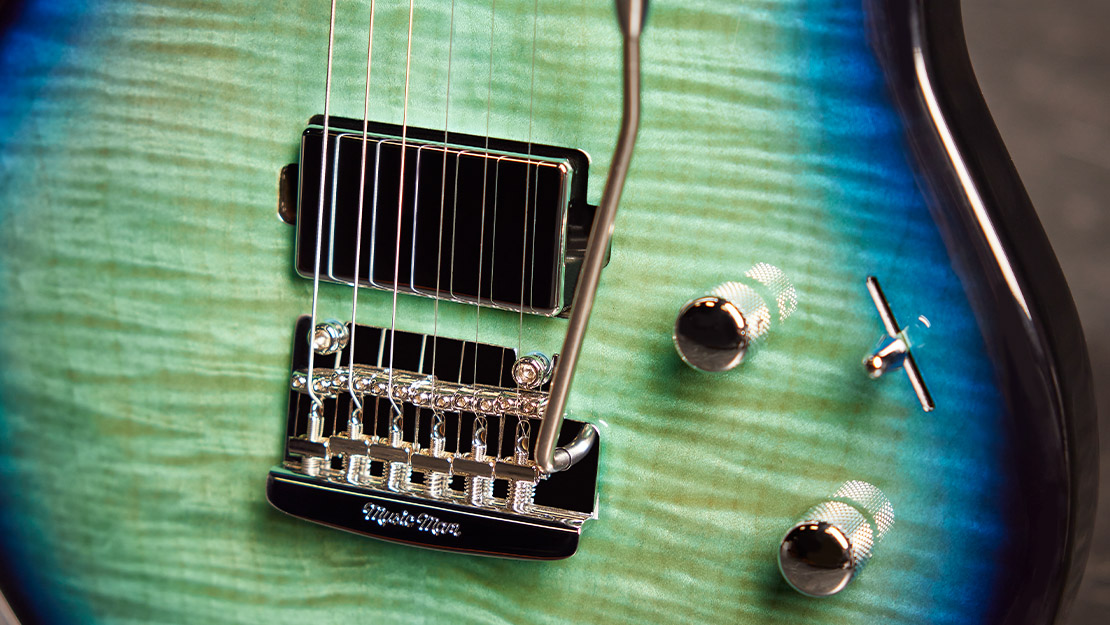

The Luke 4 HT bridge pickup outperforms regular spec pickups with ultra-high output, more dynamic range, and excellent touch sensitivity. The pickup garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

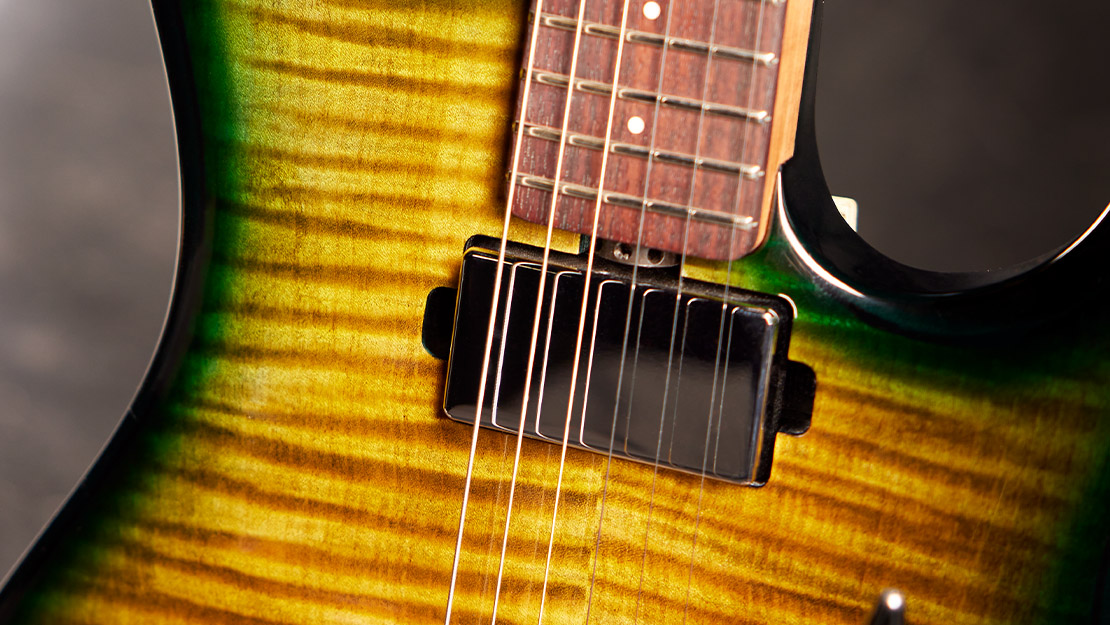

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Luke 4’s bridge pickup.

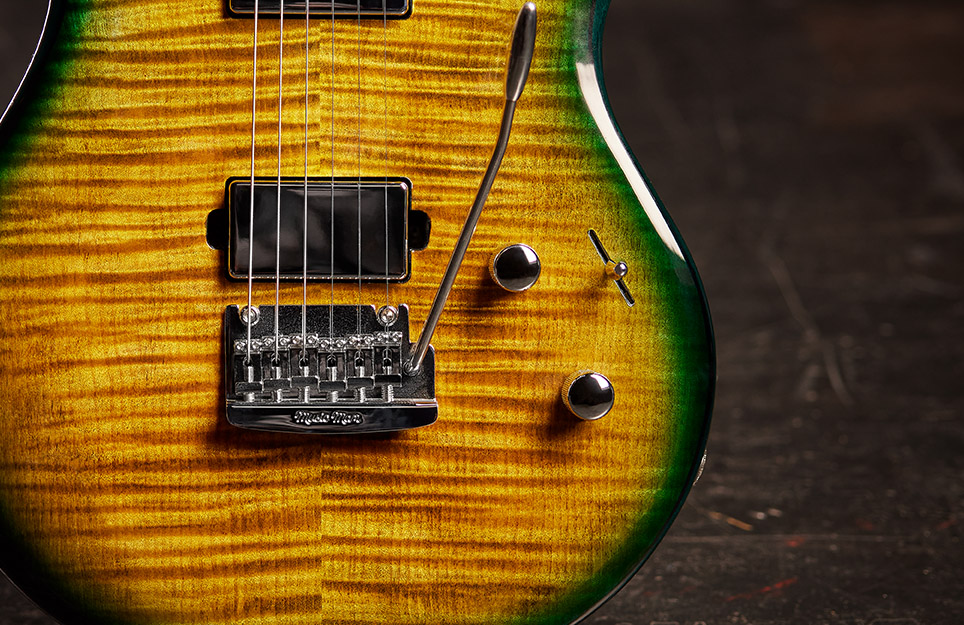

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

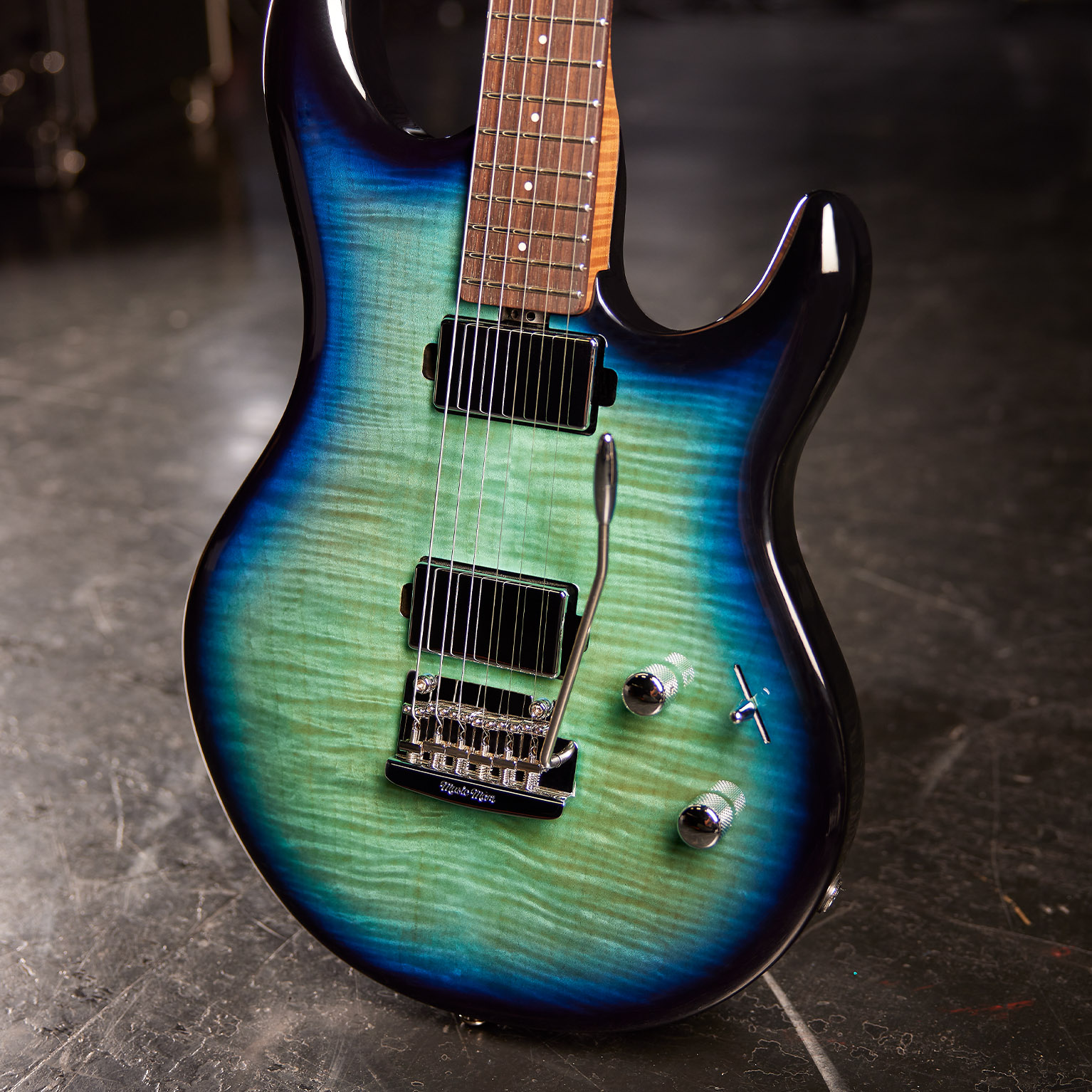

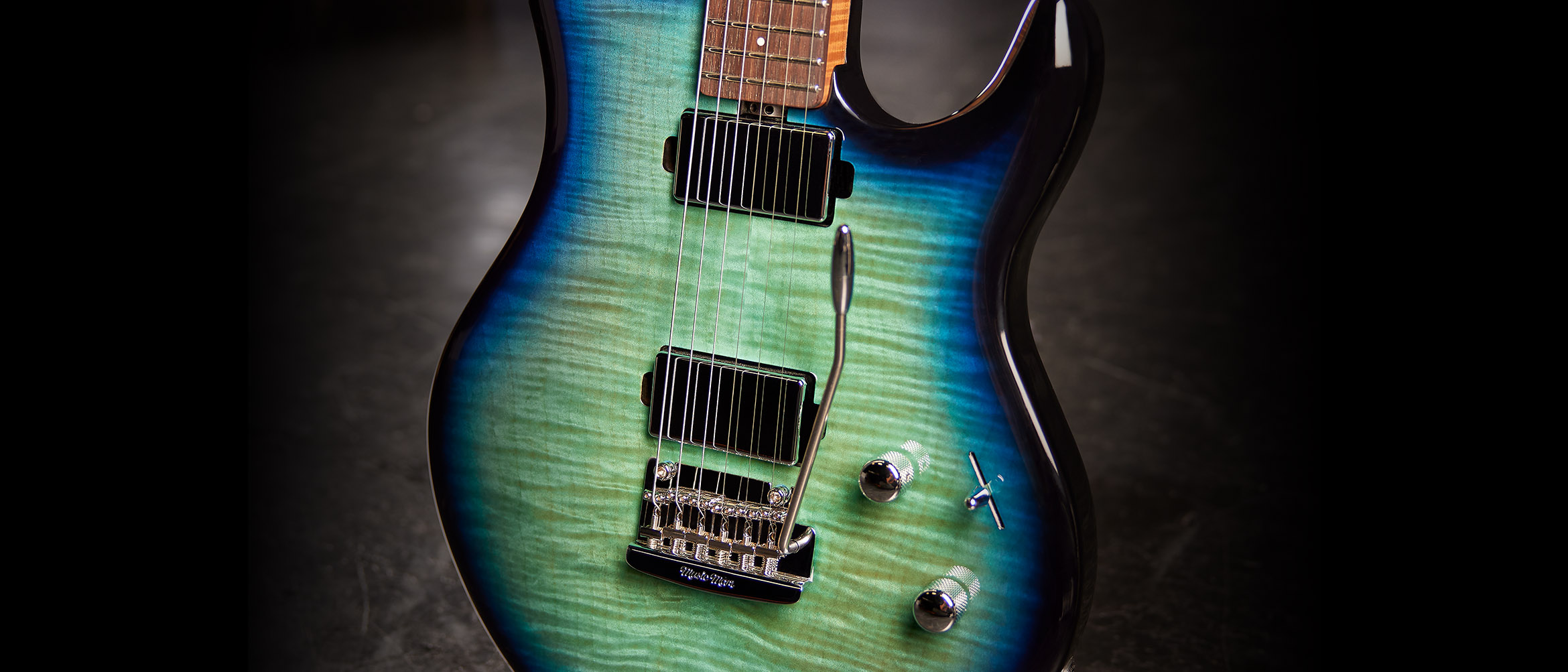

The Luke 4's double-cutaway design features a balanced, resonant Okoume body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

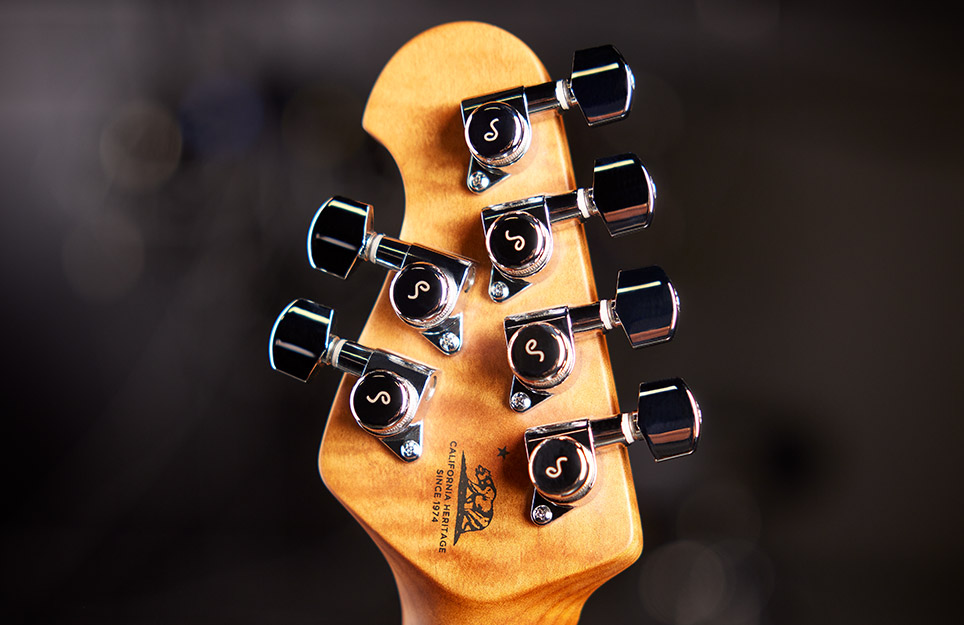

The Luke 4 features Schaller M6-IND locking tuners in Chrome.
| Spécificités | Luke 4 HH Maple Top |
|---|---|
| Modèle | Luke 4 HH Maple Top |
| Dimensions | 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long) |
| Caisse | Okoume with Flame Maple Top |
| Finition | High gloss polyester |
| Chevalet | Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles |
| Diapason | 25.5" |
| Rayon de la touche | 12" |
| Frettes | 22 - Low profile, wide - Nickel |
| Largeur du manche | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile. |
| Manche | Figured Roasted Maple |
| Touche | Rosewood |
| Repères | White Corian 1/8" Dots |
| Finition manche | Gunstock oil and hand-rubbed special wax blend |
| Mécaniques | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |

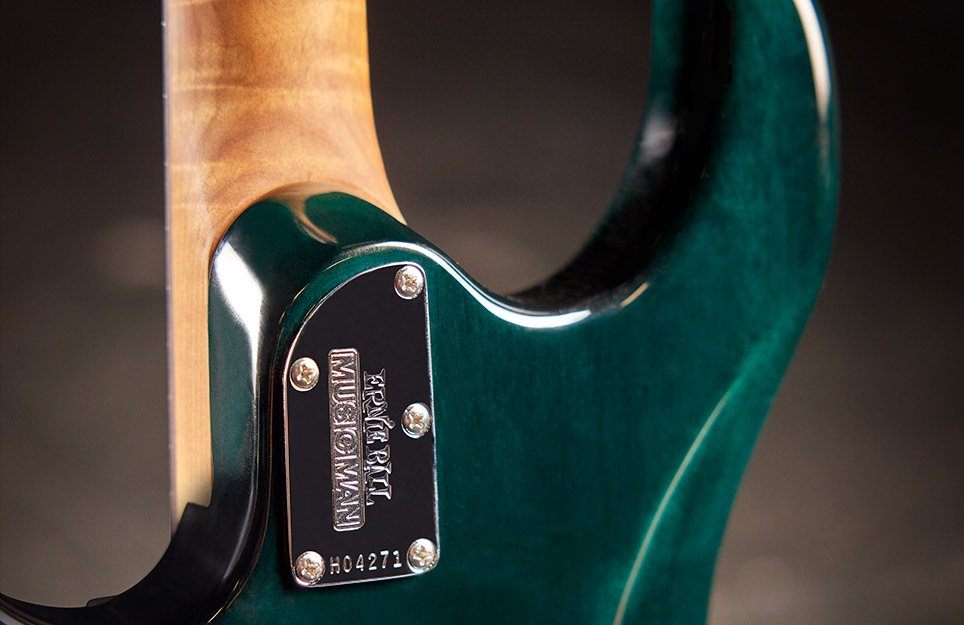

| Type de manche | 5-bolt, sculpted neck joint |
| Blindage | Graphite acrylic resin coated body cavity and aluminum control cover |
| Diagramme des contrôles | Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch |
| Sélecteurs | Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch. |
| Micros | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker |
| Cordes | Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
id => 111
iid => 111
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2023-09-13 14:18:54
updated_at => 2023-09-13 14:18:54
| Spécificités | Luke 4 HH Maple Top | |
|---|---|---|
| Model | Luke 4 HH Maple Top | |
| Order | 0 | |
| Size | 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long) | |
| Body Wood | Okoume with Flame Maple Top | |
| Body Finish | High gloss polyester | |
| Body Colors | ||
| Body Bindings | ||
| Bridge | Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles | |
| Pickguard | ||
| Scale Length | 25.5" | |
| Neck Radius | 12" | |
| Headstock Size | ||
| Frets | 22 - Low profile, wide - Nickel | |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile. | |
| Neck Wood | Figured Roasted Maple | |
| Fingerboard | Rosewood | |
| Fret Markers | White Corian 1/8" Dots | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | ||
| Neck Binding | ||
| Tuning Machines | Schaller M6-IND locking | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5-bolt, sculpted neck joint | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover | |
| Controls | Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch | |
| Switching | Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch. | |
| Pickups | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker | |
| Left Handed | ||
| Strings | Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
